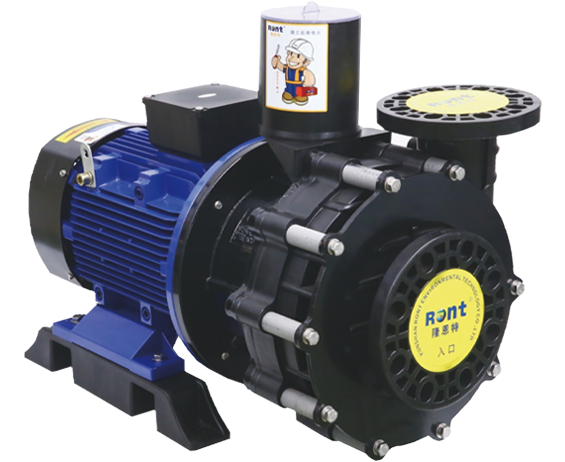

RLTH-a new generation of turbocharged chemical pumps
Newly upgraded second generation turbocharged centrifugal pump:
Efficient, energy-saving, idling-resistant design
Patent No:ZL201921346727.X
鸿发国际Applicable to: non-ferrous metal smelting, sulfuric acid industry, chlor-alkali industry, wastewater treatment industry, steel industry, coal industry, etc.
鸿发国际• Corrosion resistance, wear resistance, idling resistance, high temperature resistance, and high pressure resistance are the five advantages of resistance. Patented new idling-resistant sealing structure reduces maintenance costs.
鸿发国际• Original patented sealing design: The sealing system can handle media with particles, prolong service life, and facilitate installation.
鸿发国际• It has the advantage of being resistant to idling and not being damaged.
Turbocharging Technology
Same horsepower, efficiency +20%
鸿发国际
Same efficiency, energy saving +20%
Self-cooling Shaft Seal Design
Dry operation for 20 hours without water
The shaft seal is not damaged
Five Resistant Technology
Special material series pumps, corrosion-resistant, abrasion-resistant,
鸿发国际
resistant to idling, high temperature, high pressure five-resistant advantages.
Turbine self-priming pump, super self-priming power
| Model | Caliber（mm） （In-out） | Power | 50HZ | ||||
| Number of phases（φ） | Power（KW） | Horsepower（HP） | Curve No | Rate of flow（m³/h） | Lift（m） | ||
| RLTH-125DM-25 | 150*125 | 3 | 18.5 | 25 | a | 210 155 80 | 10 15 20 |
| RLTH-125DM-30 | 150*125 | 3 | 22 | 30 | b | 256 163 75 | 10 25 30 |
| RLTH-125DM-40 | 150*125 | 3 | 30 | 40 | c | 315 206 79 | 10 25 35 |
| RLTH-125DM-50 | 150*125 | 3 | 37 | 50 | d | 360 260 98 | 10 25 39 |
| RLTH-125DM-60 | 150*125 | 3 | 45 | 60 | e | 418 306 135 | 10 26 42 |
