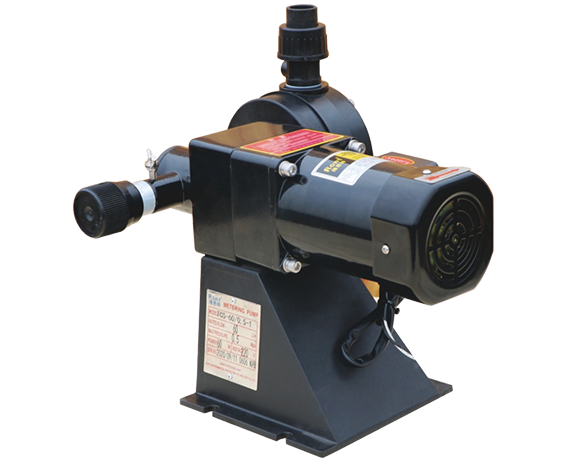

TCS-Mechanical Diaphragm Metering Pump
鸿发国际TCS-Mechanical Diaphragm Metering Pump
Small size and easy to install
鸿发国际Patent No:ZL201821479255.0
Suitable for: quantitative dosing of wastewater treatment, chemical dosing of boiler systems, chemical liquid dosing of PCB electroplating, and dosing of automatic package equipment.
鸿发国际• Small size and easy to install.
• A variety of body materials can provide users with the most suitable material for transporting fluids.
鸿发国际• There are various types, and the pump output can be selected to better meet your needs.
• Diversified piping methods.
Turbocharging Technology
Same horsepower, efficiency +20%
Same efficiency, energy saving +20%
Self-cooling Shaft Seal Design
Dry operation for 20 hours without water
鸿发国际
The shaft seal is not damaged
Five Resistant Technology
Special material series pumps, corrosion-resistant, abrasion-resistant,
resistant to idling, high temperature, high pressure five-resistant advantages.
| Model | When the maximum discharge volume outlet pressure is 0(L/H) | 鸿发国际Maximum pressure (MPa) | Number of journeys (mm) | 鸿发国际Number of strokes (spm) | Diaphragm diameter (mm) | Interface size (inch) | Weight (kg) | Motor power (w) | Remark |
| TCS12/1.0 | 12 | 1.0 | 2.0 | 108 | φ65 | d：φ 9 D：φ15 | 7.3 | 2.5uF 60W 鸿发国际220V/50Hz 1350rpm 鸿发国际380V/50Hz 1350rpm 60W 4p | Flow rate can be adjusted manually during operation |
| TCS24/1.0 | 24 | 4.0 | 90 | ||||||
| TCS32/1.0 | 32 | 4.0 | 135 | 7.4 | |||||
| TCS42/1.0 | 42 | 5.0 | 135 | ||||||
| TCS60/1.0 | 60 | 0.5 | 5.0 | 150 | φ84 | DN15 | 8.5 | ||
| TCS80/0.5 | 80 | 4.0 | 150 | 2.5uF 90W 220V/50Hz 1350rpm 380V/50Hz 1350rpm 90W 4p | |||||
| TCS90/0.5 | 90 | 5.0 | 135 | ||||||
| TCS100/0.5 | 100 | 5.0 | 150 | ||||||
| TCS110/0.5 | 110 | 4.0 | 150 | φ96 | DN15 | ||||
| TCS120/0.5 | 120 | 5.0 | 135 | ||||||
| TCS150/0.3 | 150 | 0.3 | 4.0 | 150 | |||||
| TCS180/0.3 | 180 | 8.0 | 160 | ||||||
| TCS200/0.3 | 200 | 8.0 | 166 |
| Pump body | Diaphragm | Ball valve | Ball socket | Interface | Applicable chemicals |
| PVC | PTFE/EPDM | Ceramics | FPM/EPDMor PVC | PVC | Ferrous chloride, sodium hypochlorite, PAC, sulfuric acid, hydrochloric acid, phosphoric acid, urea, defoaming agent |
| PVC | SUS304 | SUS304 | PVC | Polymer coagulant, hydrated lime mixture, activated carbon mixture, lime mixture, sodium hydroxide | |
| SUS304 | SUS304 | SUS304 | SUS304 | Organic solvents and formaldehyde, etc. | |
| SUS316 | SUS316 | SUS316 | SUS316 |
